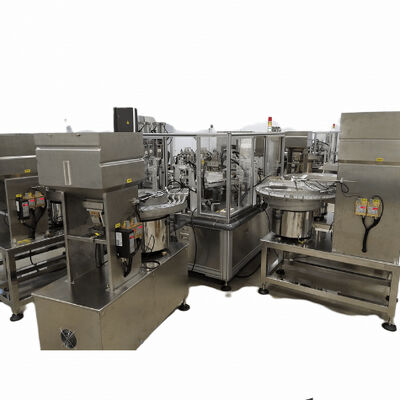

GMP Compliant Euro Cap Assembly Machine with 99% Qualified Rate and 1500-8500pcs/hr Efficiency

बड़ी छवि : GMP Compliant Euro Cap Assembly Machine with 99% Qualified Rate and 1500-8500pcs/hr Efficiency

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	SENCAN
प्रमाणन:	CE, ISO9001
मॉडल संख्या:	एससी-टीपी-849

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 सेट
मूल्य:	Negotiate price according to actual situation
पैकेजिंग विवरण:	लकड़ी का केस
प्रसव के समय:	90 दिन
भुगतान शर्तें:	टी/टी, एल/सी
आपूर्ति की क्षमता:	2-20 सेट

संपर्क करें

विस्तृत उत्पाद विवरण

वोल्टेज:	380V	बोतल का प्रकार:	प्लास्टिक की बोतलें
शक्ति का स्रोत:	बिजली	आवृत्ति:	50 हर्ट्ज
स्वचालन ग्रेड:	स्वचालित	उत्पाद शक्ति:	220V
उत्पाद रंग:	चाँदी	मशीन वजन:	लगभग 800 किग्रा
दक्षता अनुपात:	95% से ऊपर	उत्पाद का प्रकार:	असेंबली मशीन
उत्पाद मॉडल:	मेडिकल इन्फ्यूजन कैप्स	परिचालन विधि:	टर्नटेबल
वारंटी अवधि:	1 वर्ष
प्रमुखता देना:	99% qualified rate Euro Cap Assembly Machine , 1500-8500pcs/hr Infusion Cap Assembly Machine , GMP compliant Automatic Cap Assembly Machine

Euro Cap Assembly Machine

Automated cap assembly machine designed for various packaging applications, delivering high precision performance for peel seal foil caps and closures.

Key Features

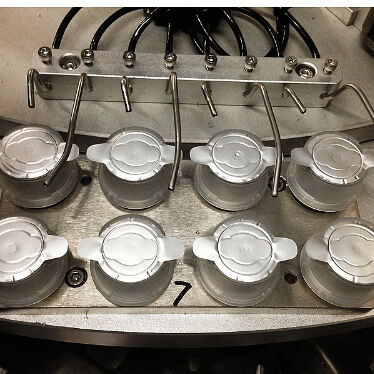

Automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials compliant with GMP standards
Independent driving source for each workstation facilitates easy maintenance
Product-contact surfaces are polished to ensure product protection
Automated foil cutting and welding processes
Integrated quality check functions at each assembly stage to eliminate defective products
PLC control system with user-friendly human-machine interface requiring minimal operator expertise
Servo motor and indexing drive power system ensures high assembly precision and qualification rates
Pneumatic power system reduces maintenance time and technical requirements
Highly customizable to meet specific product specifications, capacity, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500 pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
