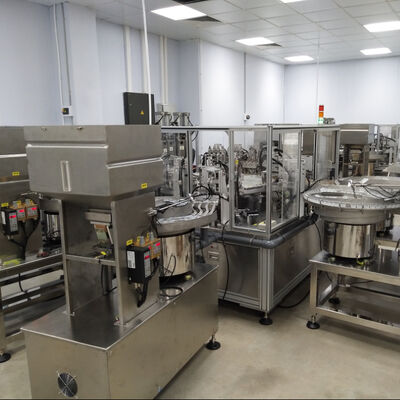

Euro Cap Assembly Machine with 14000-15000pcs/h Capacity, PLC Control, and Stainless Steel Construction for IV Infusion Caps

बड़ी छवि : Euro Cap Assembly Machine with 14000-15000pcs/h Capacity, PLC Control, and Stainless Steel Construction for IV Infusion Caps

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	SENCAN
प्रमाणन:	CE, ISO9001
मॉडल संख्या:	एससी-टीपी-839

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 सेट
मूल्य:	Negotiate price according to actual situation
पैकेजिंग विवरण:	लकड़ी का केस
प्रसव के समय:	90 दिन
भुगतान शर्तें:	टी/टी, एल/सी
आपूर्ति की क्षमता:	2-20 सेट

संपर्क करें

विस्तृत उत्पाद विवरण

नियंत्रण:	पीएलसी	प्रोडक्ट का नाम:	यूरो कैप असेंबली मशीन
नमूना:	कैप असेंबली मशीन	ऑपरेटिंग इंटरफ़ेस:	टच स्क्रीन
उत्पाद का प्रकार:	असेंबली मशीन	लागू उत्पाद:	यूरो कैप
क्षमता:	14000-15000 पीसी/घंटा	गाड़ी चलाना:	सर्वो मोटर
लागू कैप:	यूरो कैप	फ़ायदा:	इन्फ्यूजन कैप की सपाट वेल्डिंग सतह
ऑपरेशन व्यक्ति:	1 व्यक्ति	आवृत्ति:	50/60हर्ट्ज़
विधानसभा प्रकार:	पूरी तरह से स्वचालित
प्रमुखता देना:	14000-15000pcs/h Euro Cap Assembly Machine , PLC Control Cap Assembly Machine , Stainless Steel Infusion Cap Assembly Machine

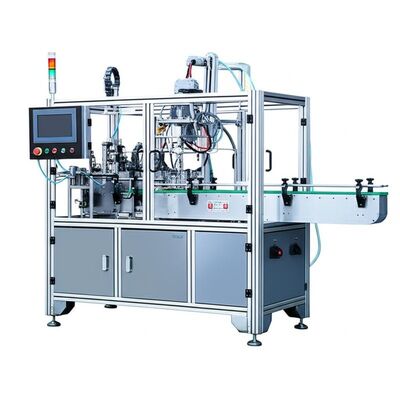

Euro Cap Assembly Machine

Automated assembly solution for fast and precise cap assembly tasks in production lines, ensuring consistent output and high efficiency.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy daily maintenance
Product-contact surfaces are polished to ensure product protection and quality
Automated foil cutting and welding processes integrated into the machine
Comprehensive check functions after each assembly step to eliminate defective products
PLC control system with user-friendly human-machine interface, requiring minimal operator expertise
Servo motor and indexing drive power system for high assembly precision and qualification rates
Pneumatic power system reduces maintenance time and replacement complexity
Highly customizable to meet specific product specifications, capacity requirements, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1,500-8,500 pieces/hour (customizable to customer requirements)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hour
Dimensions	Varies according to production speed requirements
Weight	Approximately 2,000 kg
Operator Requirements	3 sets/2 persons recommended, optimal configuration: 1 set/person
