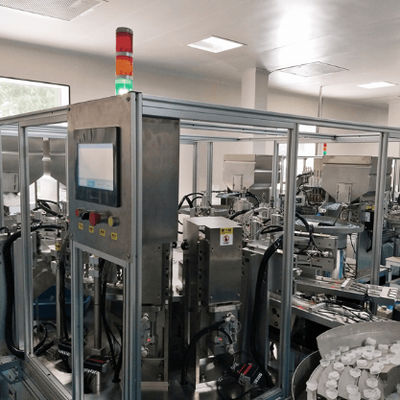

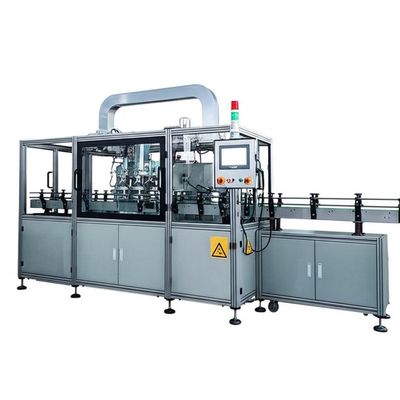

High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

बड़ी छवि : High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	SENCAN
प्रमाणन:	CE, ISO9001
मॉडल संख्या:	एससी-टीपी-821

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 सेट
मूल्य:	Negotiate price according to actual situation
पैकेजिंग विवरण:	लकड़ी का केस
प्रसव के समय:	90 दिन
भुगतान शर्तें:	टी/टी, एल/सी
आपूर्ति की क्षमता:	2-20 सेट

संपर्क करें

विस्तृत उत्पाद विवरण

ऑपरेशन टायर:	टर्नटेबल	लागू कैप:	यूरो कैप
उत्पाद का आकार:	बड़ा	शुद्धता:	उच्च
उत्पाद का प्रकार:	असेंबली मशीन	रंग:	स्टेनलेस स्टील धातु रंग
प्रचालन इंटरफ़ेस:	टच स्क्रीन	गारंटी:	1 वर्ष
उत्पादन क्षमता:	4500-16000 प्रति/घंटा	बिजली की आपूर्ति:	220V/50Hz
हवा का दबाव:	0.6-0.8mpa	विन्यास:	जलसेक फ़्लिम कैप असेंबली मशीन
उत्पाद मॉडल:	मेडिकल इन्फ्यूजन कैप्स	उत्पाद का ब्रांड:	यूरो
वोल्टेज:	220V
प्रमुखता देना:	99% Qualified Rate Euro Cap Assembly Machine , 95% Operation Rate Euro Cap Assembly Machine , 220V/50Hz Euro Cap Assembly Machine

Customizable Euro Cap Assembly Machine

A precision-engineered solution for automatic assembly of peel seal foil caps, designed to meet your specific production requirements while maintaining high quality standards.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel + aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for optimal product protection
Automated foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defective products
User-friendly PLC control system with human-machine interface, requiring minimal operator training
High-precision servo motor + indexing drive system ensures superior assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to match your product specifications, capacity needs, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
