Automatic IV Infusion Peel-foil Cap Assembly Machine with 4000-12000 Caps per Hour and 99% Qualified Rate

ब्रांड नाम:	SENCAN
मॉडल नंबर:	एससी-टीपी-818
MOQ:	1 सेट
कीमत:	Negotiate price according to actual situation
भुगतान की शर्तें:	टी/टी, एल/सी
आपूर्ति की योग्यता:	2-20 सेट

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

प्रमाणन:

CE, ISO9001

उत्पाद क्षमता:

4000-12000 कैप प्रति घंटे

नमूना:

कैप असेंबली मशीन

स्वचालन ग्रेड:

स्वचालित

उत्पाद का ब्रांड:

यूरो

प्रचालन गति:

एडजस्टेबल

सक्रिय बल:

सर्वो मोटर या सिलेंडर

प्रचालन दर:

98%

हवाई दबाव गेज:

एसएमसी

टोपी प्रकार:

आसव कैप

पैकेजिंग विवरण:

लकड़ी का केस

प्रमुखता देना:

उत्पाद का वर्णन

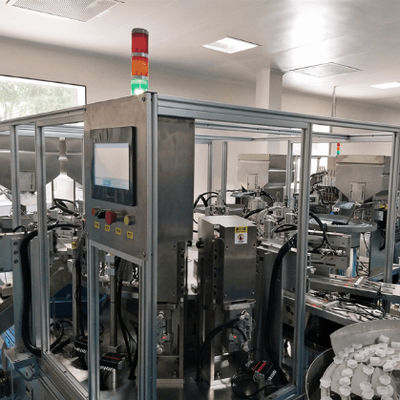

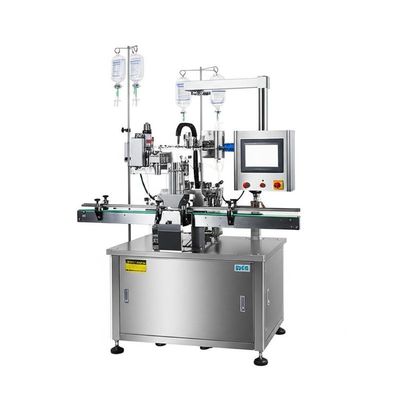

IV Infusion Peel-foil Cap Assembly Machine

Key Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for product protection
Automatic foil cutting and welding process
Integrated quality check function after each assembly step to eliminate defects
User-friendly PLC control system with human-machine interface operation
Precision assembly with servo motor + indexing drive power system
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
