उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| गारंटी: | 1 वर्ष | विशेषताएँ: | उच्च दक्षता, संचालित करने में आसान |
|---|---|---|---|
| प्रचालन इंटरफ़ेस: | टच स्क्रीन | योग्य दर: | 98% |
| शक्ति का स्रोत: | एसी380V,50Hz,4kw/घंटा | असेंबली प्रकार: | हेली कैप |
| संचालन विधा: | स्वत: | संरक्षा विशेषताएं: | एकाधिक सुरक्षा सुविधाएँ |
| हवाई खपत: | 0.5m³/मिनट | बिक्री के बाद सेवा: | विदेशों में सेवा मशीनरी के लिए उपलब्ध इंजीनियर |
| नियंत्रण प्रणाली: | स्वीकृति | विधानसभा क्षमता: | बड़ी क्षमता |
| रफ़्तार: | एडजस्टेबल | ||

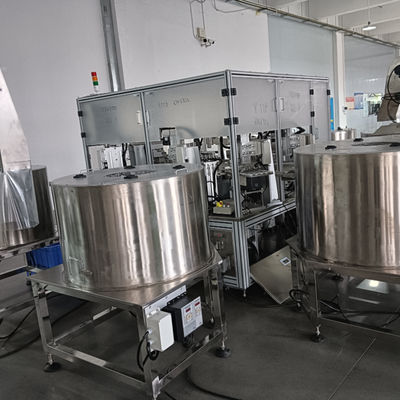

| प्रमुखता देना: | 98% Qualified Rate Heli Cap Assembly Machine,0.5m³/min Air Consumption Automatic Assembly Machine,Automatic Detection Daily Necessities Assembly Machine |
||
Features
1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.
Properties
Applicable products: Helicap, 3 parts caps closures requiring orientation and screwing assembly
Production speed: 3000-12000pcs/hr (according to customer’s requirement)
Rate of qualified product: Above 99%(depends on raw material quality)
Rate of operation rate: Above 95%
Power source: AC380V, 50Hz, 4kw/hr
Dimension: Actual size varied with different production speed
Weight: About 2850kg
Operator: 1set/person
