उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| उत्पादन क्षमता: | 1200-10000 प्रति घंटा | प्रचालन प्रकार: | टर्नटेबल |
|---|---|---|---|
| ऑपरेशन मोड: | टच स्क्रीन | प्रकार: | स्वचालित असेंबली मशीन |
| प्रमाणन: | आईएसओ 9001, सीई | उपयुक्त उत्पाद: | पंप हेड स्वचालित विधानसभा मशीन |
| पैकेजिंग प्रकार: | लकड़ी का केस | मुख्य ड्राइव: | सर्वो मोटर और इंडेक्सिंग डिस्क |
| रफ़्तार: | उच्च | सामग्री: | स्टेनलेस स्टील |
| भरी विधि: | वाइब्रेटिंग प्लेट | वोल्टेज: | 220V |
| योग्य दर: | 99% | रखरखाव: | बनाए रखना आसान है |
| प्रमुखता देना: | ISO 9001 Certified Medical Product Assembly Machine,220V Voltage IV Soft Bag Caps Welding Machine,99% Qualified Rate Automatic Assembly Machine |
||
Features

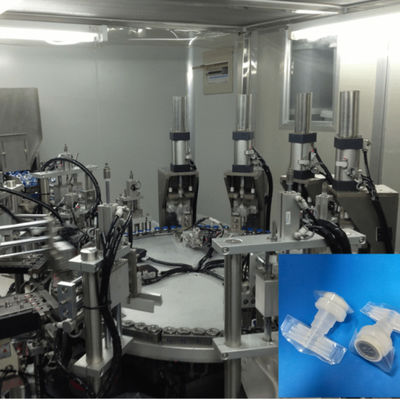

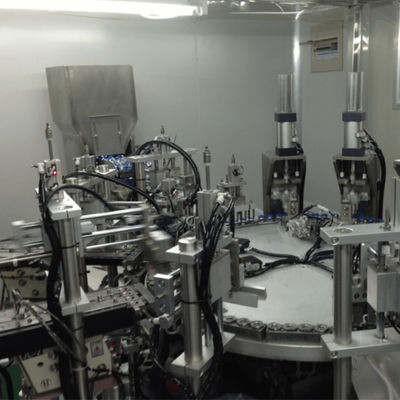

1. Automatic assembly of IV soft bag caps and ports welding machine .
2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.
3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.
4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
5. All driving and inspection systems made from outstanding international suppliers
6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
Properties
|
Applicable products |
Nasal swab, nasal collector, nasal sampler |
|
Production speed |
2500-8000pph |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz,5kw/h, air pressure 7kg/m3 |
|
dimension |
Actual size varied with production speed |
|
weight |
About 2850kg |
|
operator |
1set/person |
