उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| स्वचालन ग्रेड: | स्वत: | योग्य दर: | 99% |
|---|---|---|---|
| प्रचालन इंटरफ़ेस: | टच स्क्रीन | प्रचालन इंटरफ़ेस: | टच स्क्रीन |
| दक्षता अनुपात: | 95% से ऊपर | नियंत्रण प्रणाली: | स्वीकृति |
| वोल्टेज: | 220V | हवा का दबाव: | 0.6-0.8mpa |
| उत्पाद क्षमता: | 4000-12000 कैप प्रति घंटे | प्रचालन पद्धति: | टर्नटेबल/यांत्रिक |
| प्रचालन गति: | एडजस्टेबल | प्रकार: | असेंबली मशीन |
| उत्पाद आवृत्ति: | 50 हर्ट्ज | आवृत्ति: | 50 हर्ट्ज |
| प्रकृति: | स्वत: | ||
| प्रमुखता देना: | 4000-12000 caps per hour Euro Cap Assembly Machine,0.6-0.8MPa Air Pressure Cap Assembly Machine,Automatic Ultrasonic Welding Machine |
||

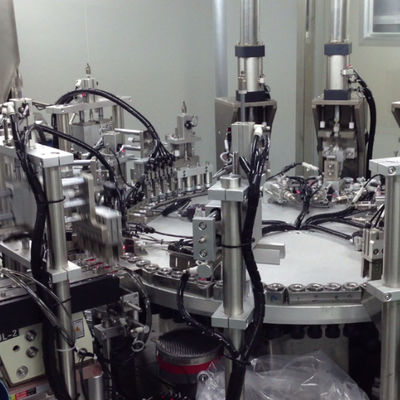

Features
1. For assembly caps and closures require ultrasonic welding.
2. All materials of the equipment are made of stainless steel + aluminum alloy, meet GMP requirements.
3. Main power servo motor + indexing drive, high precision and high qualified product rate.
4. Titanium alloy welding head, international supplier of ultrasonic welding device with high quality and very long service life.
5. International brand feeding vibrator with lower noise, smoother feeding and faster speed.
Properties
|
Applicable products |
Multi-piece plastic caps and closures requiring ultrasonic welding |
|
Production speed |
8000-15000pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
L3500×W3400×H1800(mm) Actual size varied with different production speed |
|
Weight |
About 3000kg |
|
Operator |
1set/person |
