| क्षमता: | 14000-18000 पीसी/घंटा | संचालन विधा: | स्वत: |
|---|---|---|---|
| उत्पादन क्षमता: | उच्च | वज़न: | 500 किलोग्राम |
| संचालक: | एक ही या द्वि | उत्पाद आवृत्ति: | 50 हर्ट्ज |
| विधानसभा प्रकार: | स्वत: | विधानसभा क्षमता: | 4500-12000 प्रति घंटा |
| टोपी व्यास सीमा: | 10-50 मिमी | प्रचालन इंटरफ़ेस: | टच स्क्रीन |
| नमूना: | कैप असेंबली मशीन | ऑपरेशन मोड: | स्वत: |
| विशेषताएँ: | उच्च दक्षता, संचालित करने में आसान | तंत्र: | इमदादी |
| लागू उत्पाद: | यूरो कैप | ||
| प्रमुखता देना: | Automatic Euro Cap Assembly Machine 14000pcs/h,Euro Cap Assembly Machine 50Hz,High-speed Euro Cap Assembly Machine |
||
Features

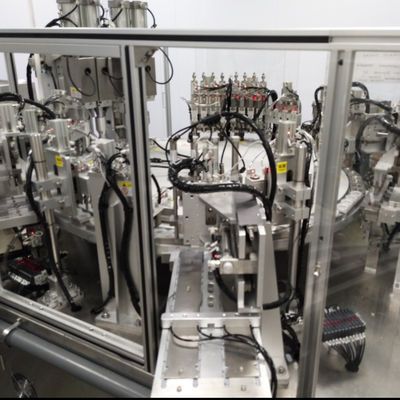

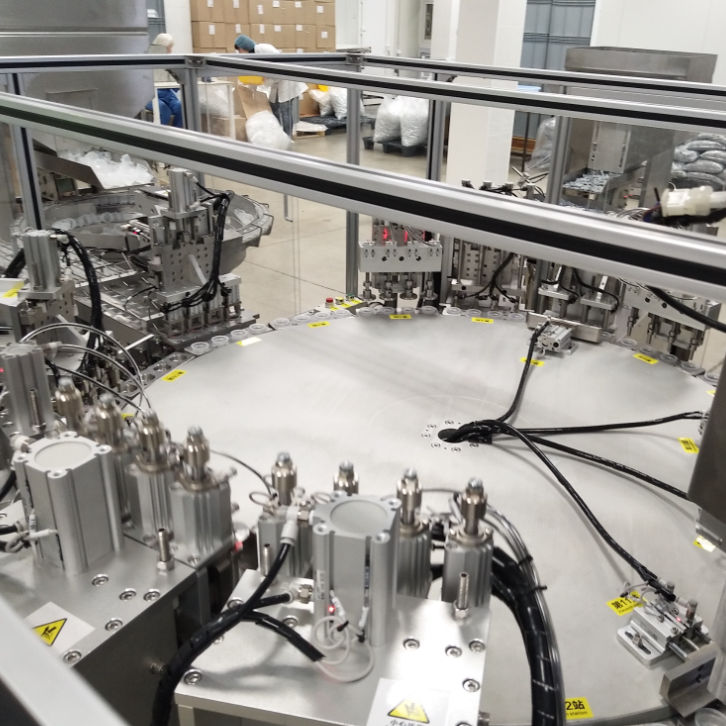

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.
2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards
3. Each workstation has independent driving source , convenient for daily maintenance.
4. The surface in contact with the product is polished to protect the product.
5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.
6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.
9. Pneumatic power for shorter time of maintenance
10. Highly customized according to customer's requirements, actual capacity and production demand.
Properties
|
Applicable products |
Loop pull cap, double pull cap, single fold closure, double fold cap, break caps |
|
Production speed |
3600-1400pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 2300kg |
|
Operator |
3sets/2persons,recommend 1set/person |
